Application areas: Widely used in the field of fine industry, such as dispersion, mixed liquid phase and solid-liquid chemical materials, strong shear, dissolution, etc.
Materials: widely used in coatings, coatings, new materials, dyes, inks, pigments, glues, resins, additives, lotion, pesticides, chemicals and other products. D. Other matters

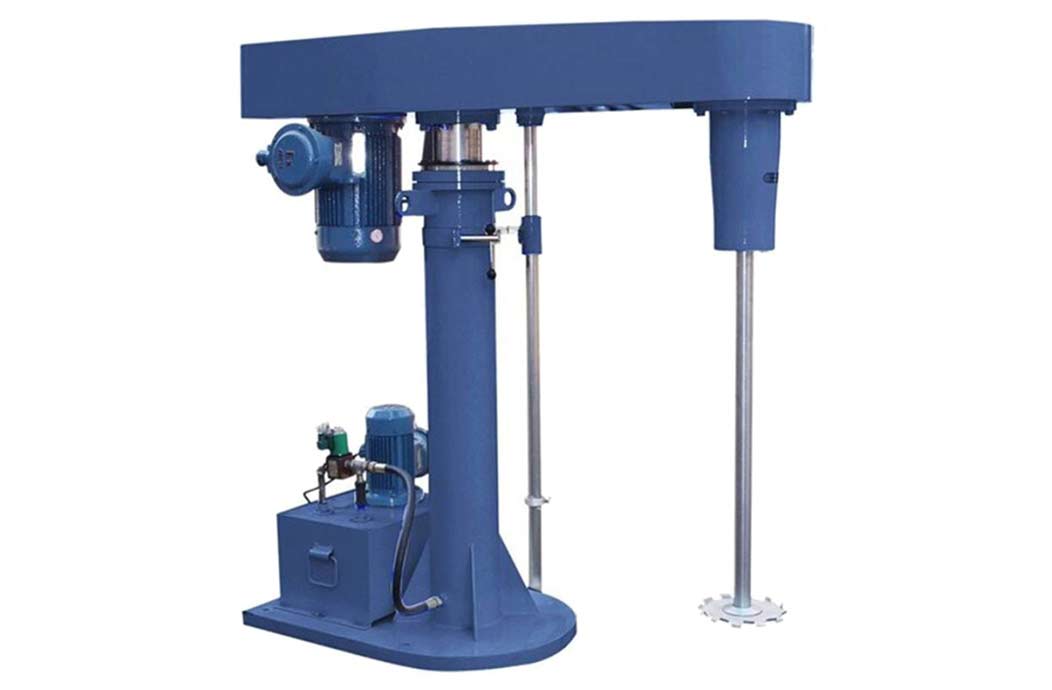

Product Introduction: The hydraulic lifting high-speed disperser has dispersion and mixing functions, suitable for large-scale production of products; This device adopts a frequency converter (stepless speed regulation), which has long running time, stability, and low noise; The dispersing disk is easy to disassemble and can be replaced with different specifications and types according to the process characteristics; The lifting structure adopts hydraulic cylinders as the driving device to ensure the stability of lifting. Adopting an integrated fuel tank to protect the environment and prevent leaks; This device is used for mixing solid and liquid dispersions.
Characteristics and features
1. Hydraulic lifting method, structurally stable, convenient, sturdy and durable.
2. Adopting a continuously variable transmission for safer and more stable operation.
3. We have three grasping forms: belt, pneumatic, and manual.
4. Non standard design can be carried out according to customer requirements.
5. According to the material conditions, explosion-proof or conventional types can be used.
working principle
The fast disperser, which is lifted by high-speed dispersing disc hydraulic lifting, ensures the circular motion of the material, thereby generating a strong vortex, which is lowered to the bottom of the vortex by the spiral. Strong shear collisions and friction occur between particles, ensuring rapid distribution, dissolution, uniform mixing, and emulsification. Through the operation of the hydraulic pump, the hydraulic plunger rises and falls, driving the entire transmission mechanism and working group.
