Bucket elevator

Bucket elevator Bucket elevator Bucket elevator
Bucket elevator Bucket elevator Bucket elevator
Product introduction: Bucket elevator is a transportation equipment that can continuously move materials on traction components such

Product introduction: Bucket elevator is a transportation equipment that can continuously move materials on traction components such as belts or chains. It is a conveying mechanism used to continuously lift bulk or debris materials in a vertical or near vertical direction with a large inclination angle. Simple structure, small space occupation, high lifting height, stable operation, low noise, and fast speed.

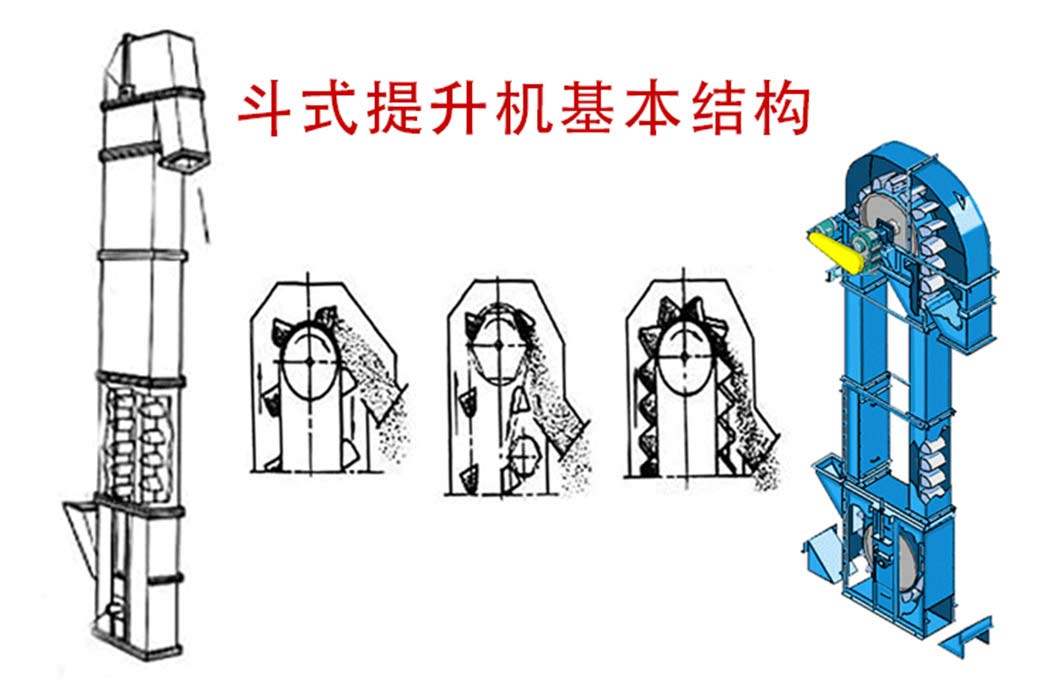

Working principle of bucket elevator

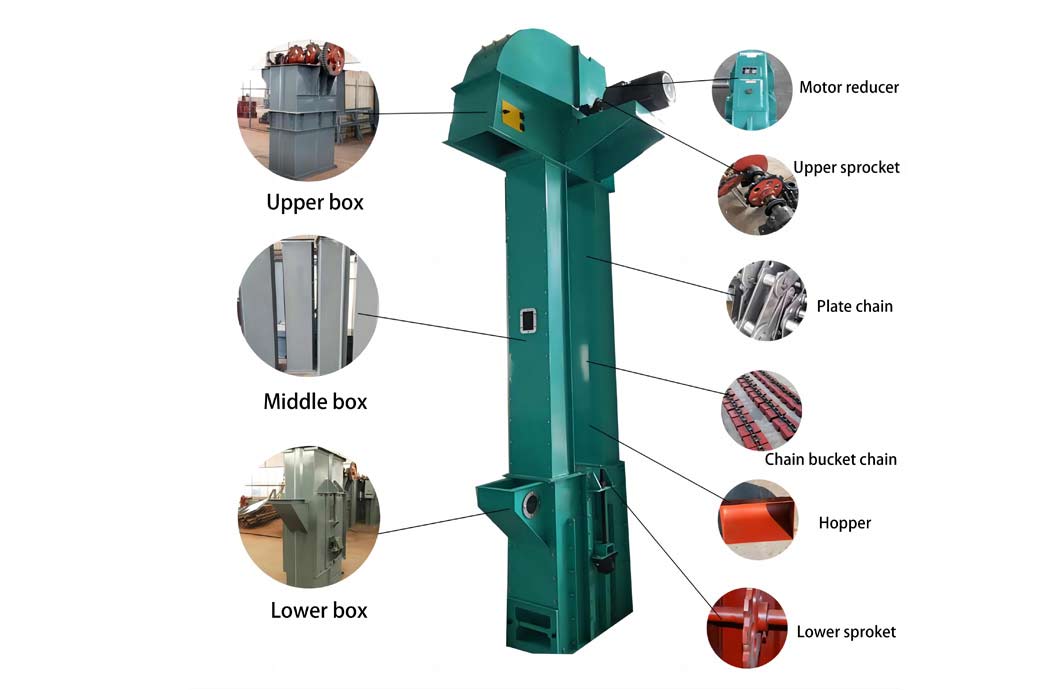

The hopper takes the material out of the warehouse from the bottom, and then the material moves upwards through a conveyor or chain, passes around the thrust roller, flips downwards, and is poured into the receiving trough using a bucket elevator. The drive belt of bucket elevator with drive device usually uses rubber belts installed at the bottom or top of the drive drum and the top and bottom of the reversible drum. A bucket chain hoist typically has two parallel drive chains, with a pair of drive sprockets at the top or bottom and a pair of reversible sprockets at the bottom or top. Bucket elevators are usually equipped with a casing to prevent dust from scattering inside the elevator.


Characteristics of bucket elevator

1. The driving power is small. Adopting feeding materials, inducing unloading, and tightly placing large capacity hoppers. During the material lifting process, there is almost no backfilling phenomenon, so there is almost no reaction force.


2. Wide range of improvement. This type of hoist has lower requirements for material type and performance, and can not only lift ordinary powder and fine particle materials, but also improve materials with high grindability. Good sealing and minimal environmental pollution.


3. Long service life. The materials are transported to the silo through air intake, without the need for digging with a bucket, and there is little compression or collision between the materials. The design of this machine ensures minimal scattering of materials during the feeding and unloading processes, thereby reducing mechanical wear and tear.


4. High operational reliability, advanced design principles and processing methods ensure the reliability of the entire machine, with a fault free operation time exceeding 20000 hours. Height increase. The elevator runs smoothly, so it can achieve a high lifting height.


If you need our product, please raise any questions and we will reply as soon as possible.
