Roll sand making machine

Roll sand making machine Roll sand making machine
Roll sand making machine Roll sand making machine

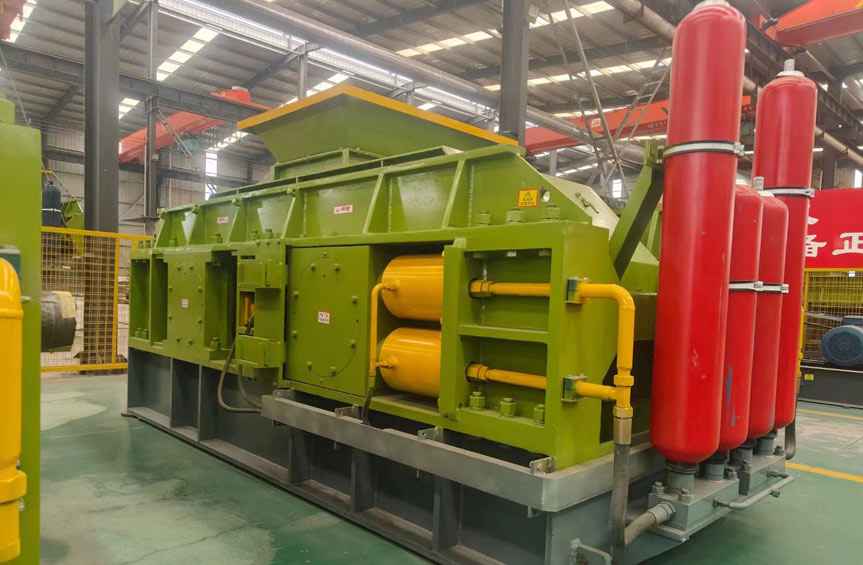

Product Introduction: The hydraulic roller sand making machine, also known as the hydraulic roller crusher, is actually an upgraded version of the spring roller sand making machine, with a hydraulic cylinder as the pressure output.


The main modification of the hydraulic roller sand making machine is to replace the old spring with a hydraulic device. After a period of use, the old spring roller sand making machine requires manual adjustment of the spring pressure to meet the requirements of the finished product. The fully hydraulic roller sand making machine is automatically adjusted and will automatically supplement the pressure, and the pressure is also more accurate. The structure and working principle of the hydraulic roller sand making machine are the same except for the pressure structure



[Applicable materials] Sand crushing work for materials such as river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, bluestone, mountain stones, limestone, weathered sand, diabase, granite, basalt, etc.




[Performance Characteristics]:


1. Compact structure and energy saving 2. Low crushing force and good crushing effect 3. Newly upgraded fully automatic hydraulic system 4. Thickened roller skin and long service life 5. Integrated hydraulic spring, balanced flash protection, no vulnerable parts


Working Principle


The hydraulic roller sand making machine performs crushing operation through the rollers. The material enters between the rollers through the feeding port and crushes river pebbles through extrusion. There is a gap between the two rollers, and the gap between the two rollers becomes larger, resulting in a larger particle size of the material. Under the action of the compression spring, the gap between the two rollers becomes smaller, resulting in a smaller particle size of the material. By changing and adjusting the gap, the particle size of the material can be controlled,


ͺ

ֱ

(mm)

(mm)

(t/h)

2PGT400250

40

25

2-10

2PGT400400

400

25

5-12

2PGT610x400

610

30

5-20

2PGT750500

75C

30

10-40

2PGT800600

800

40

12-50

2PGY800800

800

40

40-50

2PGY8001000

80c

40

50-80

2PGY1000800

1000

40

50-80

2PGY1000100C

1000

40

80-100

2PGY12001000

1200

60

100-120

2PGY12001200

1200

60

120-150

2PGY15001000

1500

80

150-200

2PGY15001200

1500

80

200-250

2PGY18001000

1800

100

250-300

2PGY2000x1200

2000

120

300-400


If you need our product, please raise any questions and we will reply as soon as possible.
