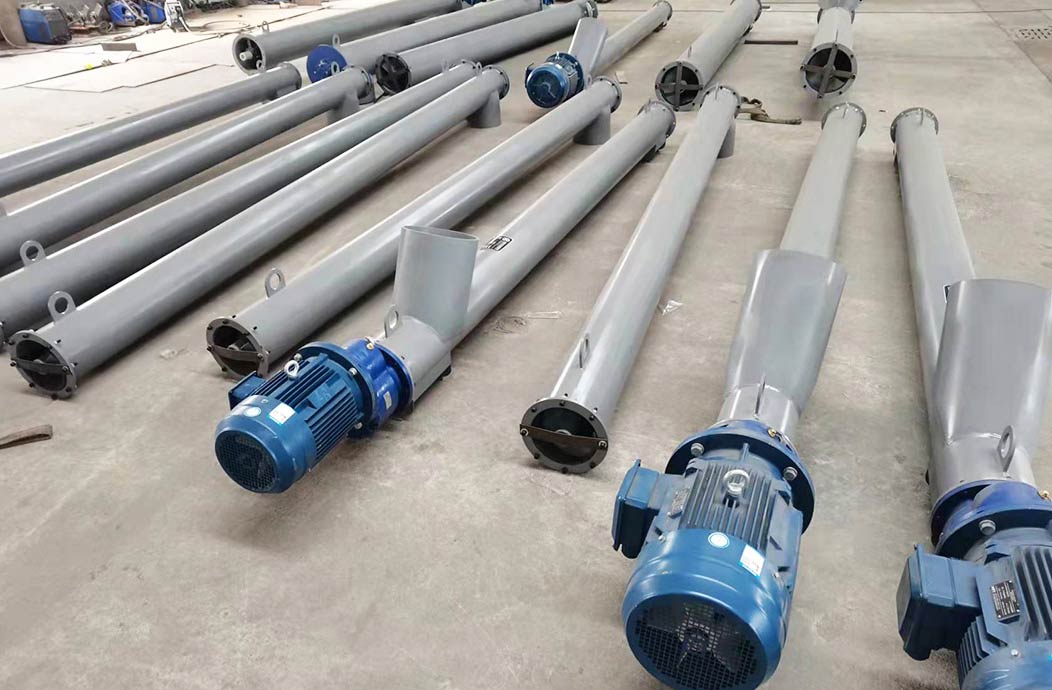

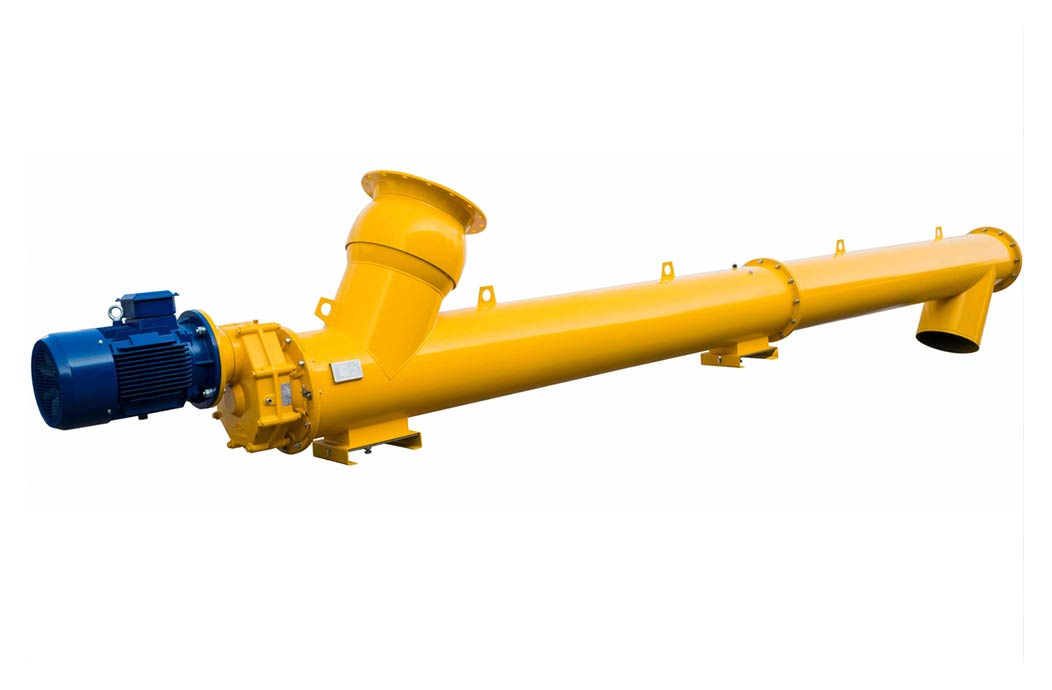

Spiral conveyor

Product Introduction: Spiral conveyor is a new type of conveyor equipment designed for transporting special materials. Various powders, particles, and small pieces of material are professionally transferred horizontally or vertically through screws on the inner shaft. However, if the material has high viscosity or is prone to clogging inside the machine, it is not recommended to use this conveyor. Specially suitable for various grains, cement, sand, and small stones, with a wide range of temperature requirements. This material can be used at temperatures ranging from -20 to 80 ℃, with high economic benefits.

Working principle of screw conveyor

When the screw rotates, due to the gravity of the material and its friction with the outer wall of the channel, the material can only move forward along the bottom of the conveyor channel under the action of the blades, similar to a non rotating nut moving forward along the rotating screw. The movement of materials in the intermediate bearing depends on the thrust of the material moving forward. Therefore, the material supply in the conveyor is entirely a sliding motion.

In order to place the spiral shaft in a more favorable stress state, the driving device and unloading hole are usually located at one end of the conveyor, with the inlet as close as possible to the tail of the other end of the conveyor. Rotating propeller blades move materials for transportation. The force that prevents the material from rotating together with the blades of the screw conveyor: the self weight of the material and the resistance of the friction material between the outer shell of the screw conveyor.

Leaves have different surface types depending on the material being transported, such as solid surfaces, strip surfaces, blade surfaces, etc. At the end of the material movement direction, the screw shaft of the screw conveyor is equipped with a thrust bearing to follow the material to the axial reaction force screw. In cases where the structural length is long, intermediate suspension bearings should be installed.

Advantages of Spiral Conveyor

1. The outer shell is made of high-quality steel, and the central axis is made of wear-resistant and non deformable special steel. To ensure the safety and stability of all devices during movement, we have adopted a safer, more stable, and wear-resistant central axis compared to similar devices, which has increased the speed of material movement several times.

2. Advanced linear cutting and other processing equipment are used to ensure the accuracy and standardization of the equipment. The screws on the central axis are made of new wear-resistant materials, which improve their wear resistance and compressibility.

3. While ensuring the overall performance of the equipment, comprehensively upgrade and optimize it to make the operation and maintenance of the whole machine more convenient.

4. Fully utilize the advantages of the equipment and significantly improve performance compared to traditional devices.

The total power provided by the engine to the equipment. By rotating the inner shaft of the screw, the material enters the bottom of the equipment through a special inlet, and gradually moves to the top of the equipment by rotating the screw. The internal design takes into account common issues such as internal pollution.
