Product Introduction

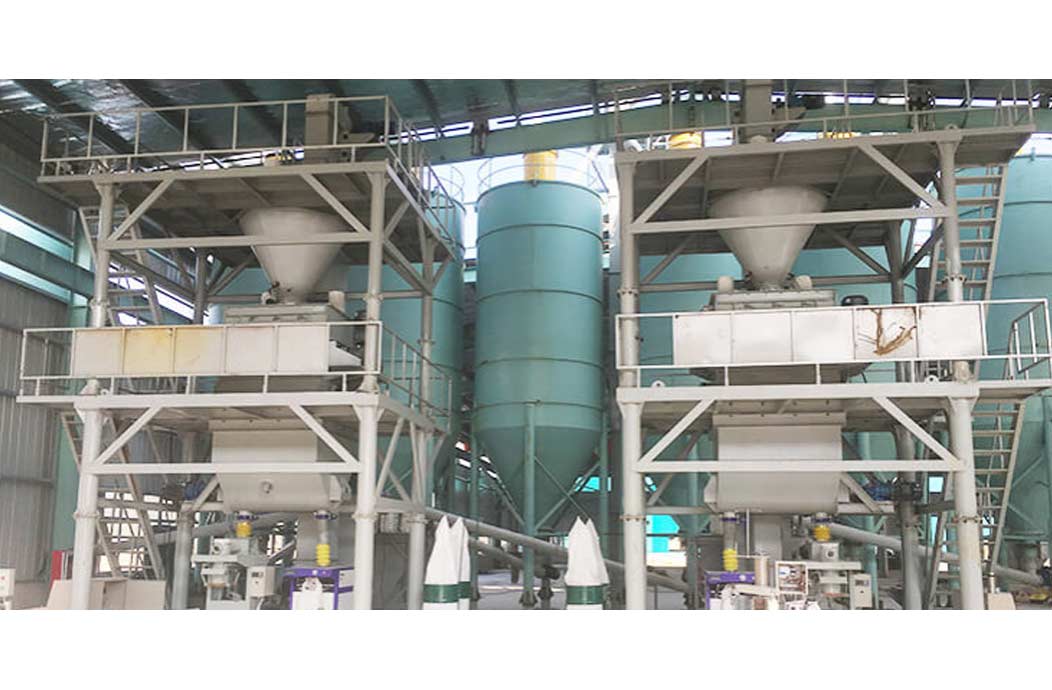

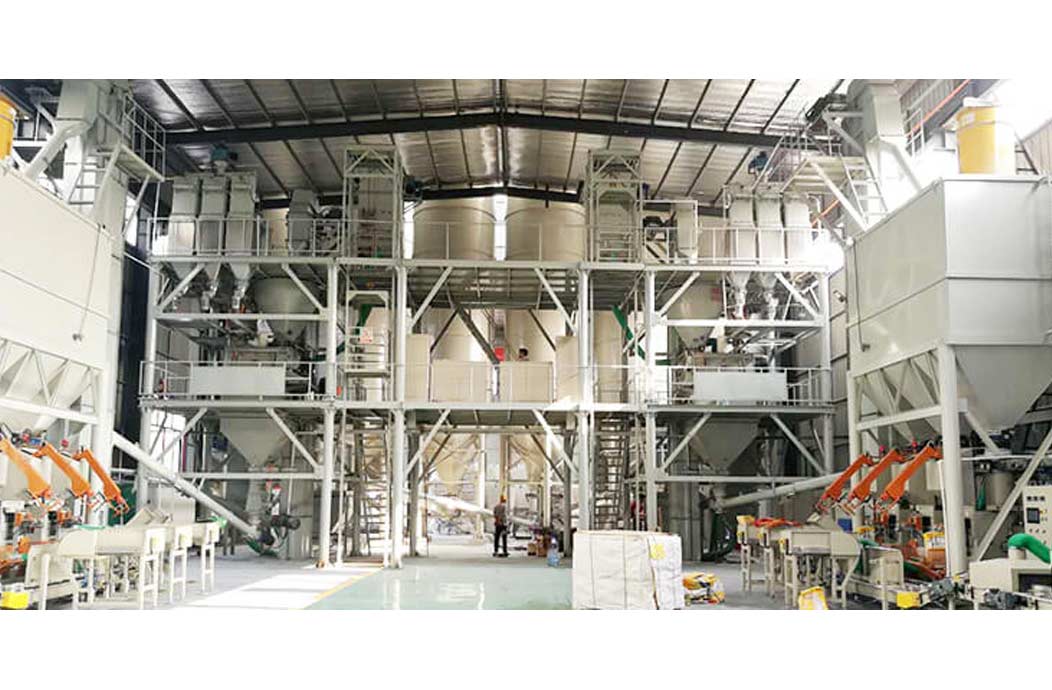

1. The main shaft of the fully automatic dry powder mortar production line adopts a dual axis gravity free mixer.
2. The machine is developed based on the integration of the essence of multiple generations of new model technology.
3. It has the characteristics of automatic feeding, pneumatic discharge, no accumulation on the barrel wall, and no dead corners.
4. The various types of dry powder mortar equipment produced by our company have the characteristics of small footprint, reasonable structure, simple operation, high production efficiency, dust-free, reasonable power configuration, moderate investment, short construction period, and fast investment return.
advantage
1) Adopting a new advanced reducer transmission system instead of chain transmission. Save costs.
2) The impeller blades are detachable, making it easy to replace worn impellers.
3) The blade is made of wear-resistant steel, which is durable and long-lasting. It's not just ordinary steel plate cutting.
Applicable materials
Also used for brick and tile mortar, gypsum mortar (bottom), floor mortar, filling agent mortar (black), joint agent mortar, filling agent mortar (white), joint agent mortar, hot mortar, self leveling mortar, plaster (bottom), cement mortar, external mortar powder, etc.
parameter
MODEL | THSJBJ2 | THSJBJ3 | THSJBJ4 | THSJBJ6 | THSJBJ10 | THSJBJ12 |
CAPACITY(T/H) | 10-15 | 15-20 | 20-40 | 40-60 | 60-80 | 80-120 |
HOST MOTOR(kw) | 18.5 | 22 | 22 | 45 | 55 | 55 |
AGGREGATE SIZE(mm) | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 | 0〜4.75 |
AGGREGATE SCALE(kg) | （200〜1000）±1％ | （200〜1500）±1％ | （200〜2000）±1％ | （400〜3000）±1％ | （400〜4000）±1％ | （500-6000）±1％ |
CEMENT SCALE(kg） | （100〜600）±1％ | （100〜700）±1％ | （100〜800）±1％ | （200〜1300）±1％ | （200〜1800）±1％ | （200〜2000）±1％ |
ADDITIVE SCALE(kg) | （5〜30）±0.5％ | （10〜40）±1％ | （10〜50）±0.5％ | （10〜200）±0.5％ | （10〜200）±0.5％ | （10〜200）±0.5％ |
