High speed disperser

Application scope: Widely used in fine industries such as liquid-liquid, solid-liquid chemical material dispersion and stirring, strong shear, dissolution, etc

Materials: widely used in paints, coatings, new materials, dyes, inks, pigments, adhesives, resins, additives, lotion, pesticides, household chemicals and other products.

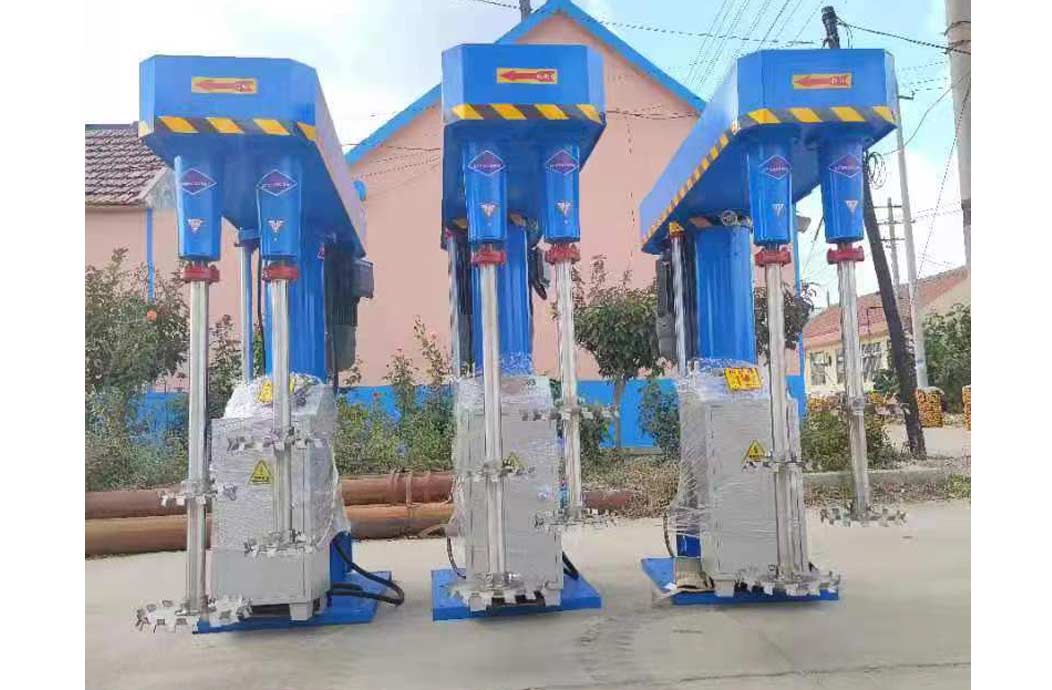

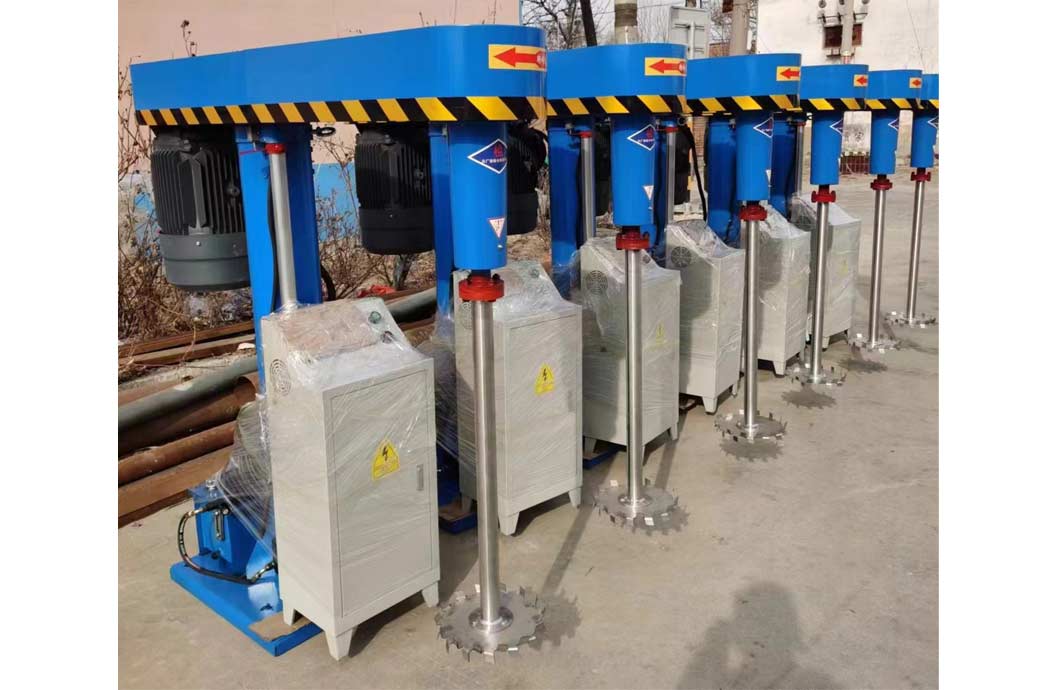

Product Introduction: The hydraulic lifting high-speed disperser has dispersing and stirring functions and belongs to large-scale operation products. This equipment is equipped with a frequency converter (stepless speed regulation), which can run for a long time, operate stably and have low noise. The dispersing disk is easy to disassemble and can be replaced with different specifications and types of dispersing disks according to the process characteristics. The lifting structure uses a hydraulic cylinder as the actuator, which is stable in lifting and uses an integrated oil tank, which is environmentally friendly and leak free. This product is a solid-liquid dispersion mixing equipment.

Performance characteristics

1. Hydraulic lifting method, smooth, convenient, and structurally sturdy and durable.

2. Adopting stepless frequency conversion speed regulation method is safer and more stable.

3. There are three forms of clamping: belt, pneumatic, and hand cranked.

4. Non standard design can be carried out according to customer needs.

5. According to the different conditions of the materials, explosion-proof or ordinary types can be selected.

working principle

The hydraulic lifting high-speed disperser operates at high speed through the dispersing disk, causing the material to form a circular flow, generating strong vortices that spiral down to the bottom of the vortices. Strong shear collisions and friction occur between particles, achieving rapid dispersion, dissolution, uniform mixing, and emulsification. The hydraulic pump drives the hydraulic plunger to lift and lower, driving the entire transmission mechanism and working group to lift and lower.

technical parameter
