Simple mixer for insulation mortar

The damage rate of vitrified microspheres plays a crucial and decisive role in the quality of the final mortar during the production process of insulation mortar

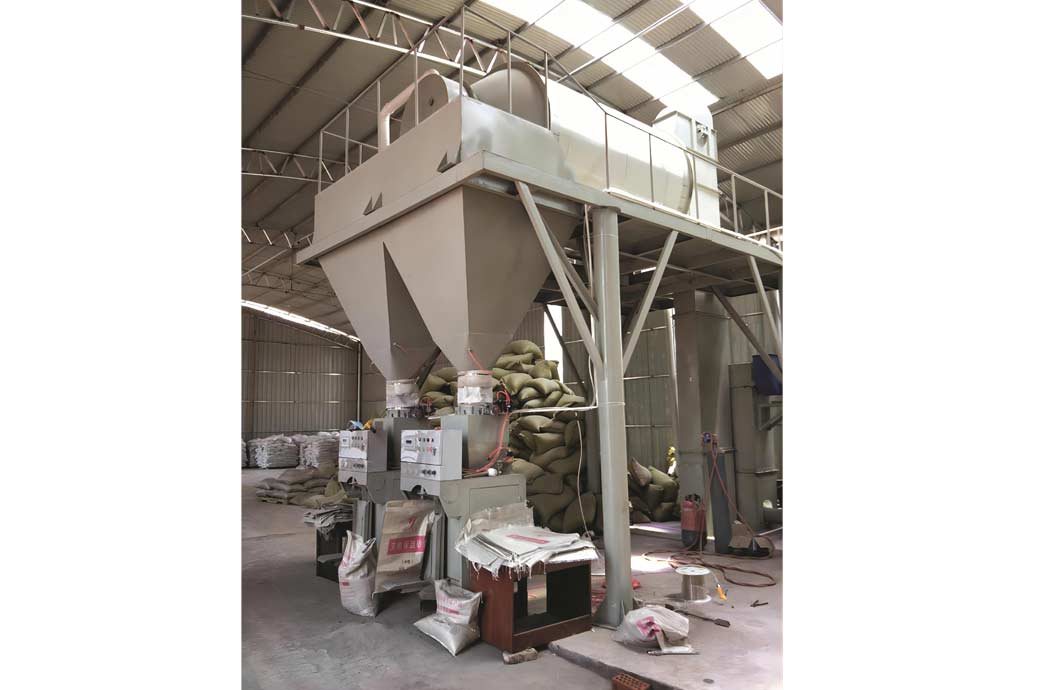

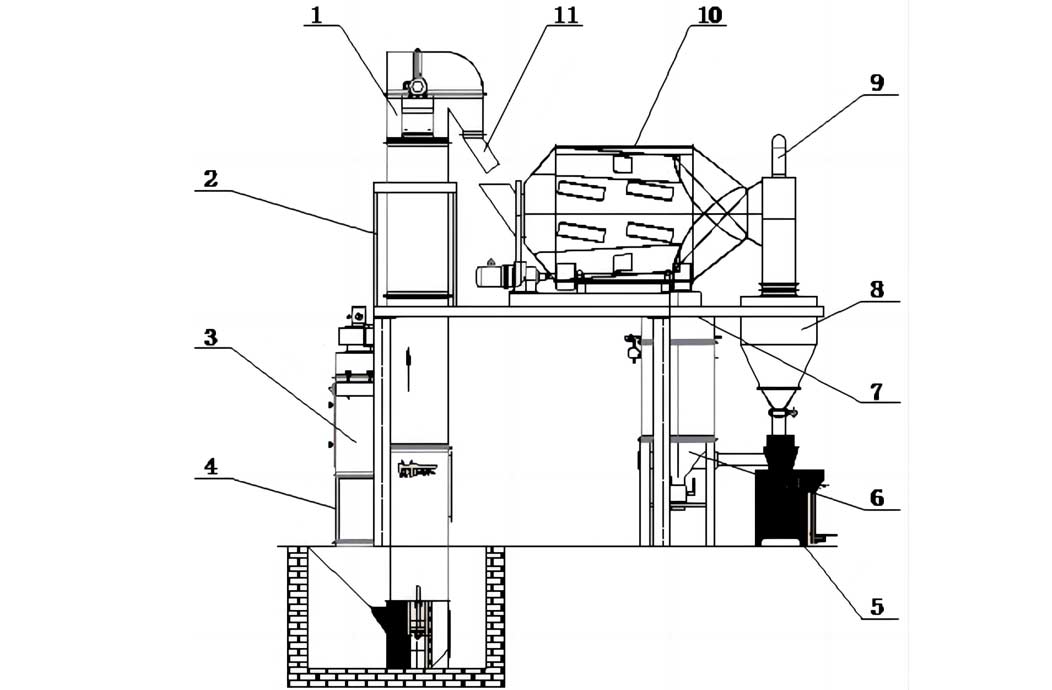

In response to the characteristics of vitrified microbeads, our company has specially launched a specialized mixer for vitrified microbead insulation mortar. During mixing, the breakage rate of vitrified microbeads is almost zero. The simple production line for insulation mortar is composed of a mixer, a hoist, control equipment, and packaging equipment.

The main production process of this equipment is to manually measure and weigh the vitrified microbeads and mortar raw materials into the feeding port, transport the materials to the mixer by a bucket elevator, and manually input other additives into the mixer. The mixer is controlled to start up and begin mixing. The mixed materials are then placed in the silo and packaging work begins.

1. The host uses guide plates inside to evenly mix materials, resulting in short mixing time and high output;

2. The mixing bin has a large capacity, with no dead corners or residues in the mixing process;

3. Sealed well, with minimal dust, easy operation, and convenient maintenance.

4. Mixing system: The mixer adopts a drum type mixer, a large capacity mixing bin, short mixing time, high output, high uniformity, no residue, and no crushing.

5. Upgrading the conveying system: The lifting conveyor used in this project is a bucket elevator, which can effectively protect the melting weight standard of vitrified microbeads and improve the lifting speed.

6. Dust removal system: The entire equipment is completely sealed without dust leakage, using multi-point dust collectors to collect dust from both the feeding and discharging ports, optimizing the working environment and ensuring the health of employees.
